Building a Biomimetic Insect-Vision Drone: A DIY Compound-Eye Camera for Panoramic Awareness and Lightning-Fast Motion Detection
When Mother Nature Goes Metal

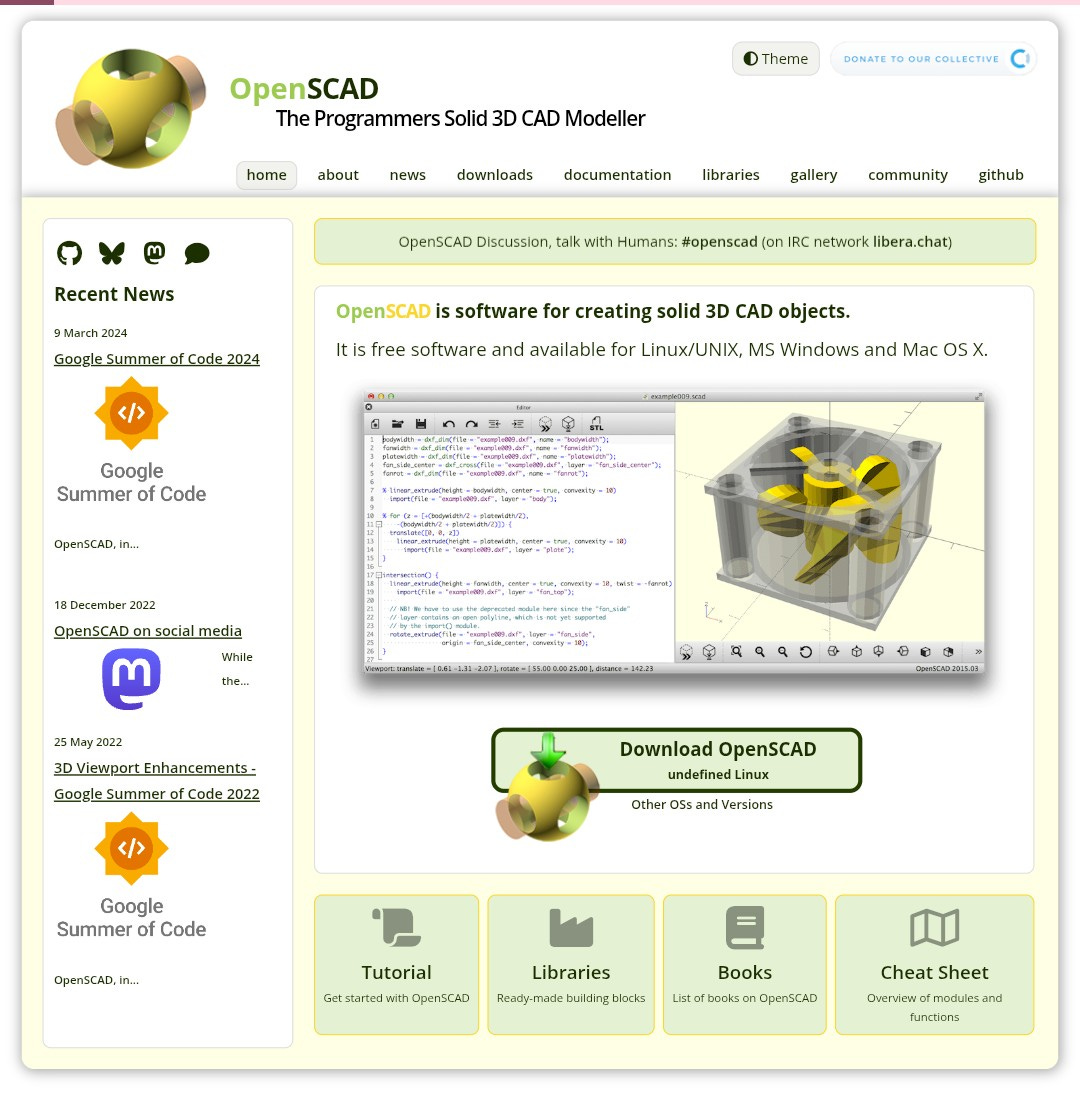

Prompt your way to physical parts with Open SCAD
Insects don’t have “eyes” like we do — they have compound eyes made of thousands of tiny lenses (ommatidia) that give them a nearly 360° field of view, incredible motion sensitivity, and the ability to navigate cluttered spaces at high speed with almost no processing power.
Modern drones still mostly rely on a single forward-facing camera or a few narrow-FOV lenses. What if we gave a drone the vision system of a dragonfly or honeybee?
Here’s a practical, buildable DIY project that gets you surprisingly close using off-the-shelf parts — including premium optics from Edmund Optics — and a Raspberry Pi brain.
Why Insect Vision Beats Traditional Drone Cameras
- Ultra-wide FOV (often >300°)
- Near-instantaneous motion detection (no rolling shutter blur)
- Low-compute optical-flow navigation (perfect for collision avoidance in forests, indoors, or GPS-denied environments)
- Redundancy — if one “facet” is damaged, the rest still work
Real-world research drones (e.g., from TU Delft, Harvard Wyss Institute, and Caltech) already use similar systems for autonomous flight.
Core Concept for This Build
We’ll create a pseudo-compound eye using either:
1. Multiple synchronized small cameras (the easiest and most practical route), or
2. A single high-res sensor + a microlens/fly’s-eye array placed in front (closer to true biomimicry, more experimental).
Both approaches run on a small drone and give you insect-like wide-angle awareness + optical flow for obstacle avoidance.
Parts List (All Readily Available, ~$300–$800 Total)
Compute & Flight Controller
- Raspberry Pi Zero 2 W or Pi 5 (Zero for ultra-light, Pi 5 for more processing power)
- Compatible flight controller (e.g., Holybro Kakute H7 or SpeedyBee F405) — runs ArduPilot/Betaflight + MAVLink to Pi
Vision System Options
Option A – Multi-Camera “Facet” Array (Recommended for Beginners)

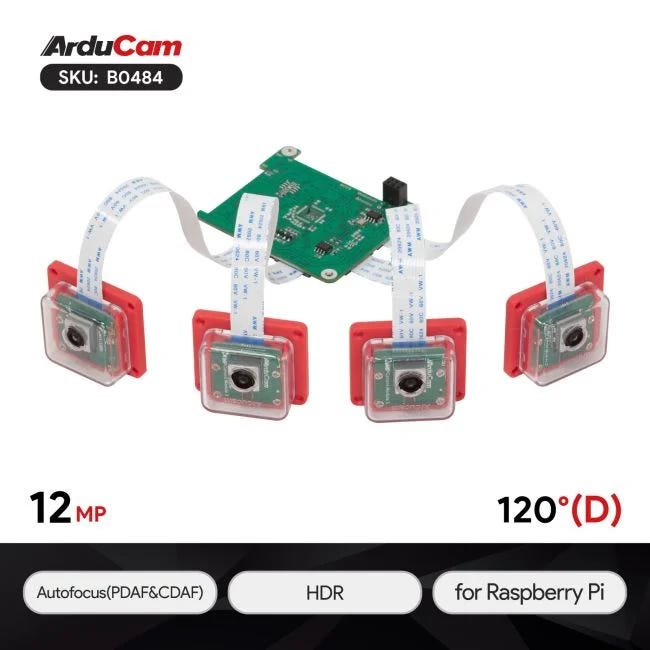

Arducam 12MP IMX708 Quad-Camera Kit (wide-angle stereo synchronized) → ~$250–$300
Four synchronized 12MP cameras → stitch into a wide panoramic view or treat each as an independent “ommatidium” for optical flow.
- Alternative: Arducam Camarray multi-camera HAT + 4× standard Pi Camera Module 3 (wide-angle lenses) → cheaper but less synced.
Option B – True Microlens Array Compound Eye (Edmund Optics route)

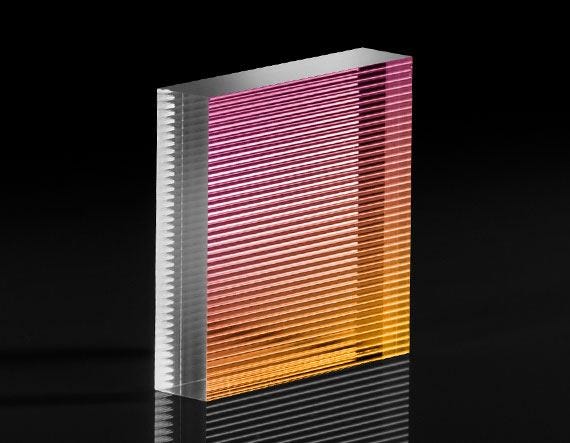

Other sizes/pitches available in their Microlens Arrays section.
- Mount it ~0.5–1 mm in front of a high-res global-shutter sensor (e.g., Arducam IMX477 or IMX519) to create dozens of overlapping micro-images.
This is exactly how many research compound-eye cameras are built.
Lenses
- M12 wide-angle/fisheye lenses (3–6 mm focal length) for each camera — Arducam or Edmund Optics UAV-series lenses for distortion-corrected performance.
- Optional: Edmund Optics #21-150 Circular Microlens Array if you want a more hemispherical facet layout.
Airframe & Power
- Tiny Whoop-style frame (BetaFPV Pavo20 or similar) or 3D-print a custom dome-shaped camera mount
- 1S–2S LiPo + BEC
- Optional: 3D-printed curved camera pod (files available on Printables and Thingiverse — search “compound eye drone”)
Other

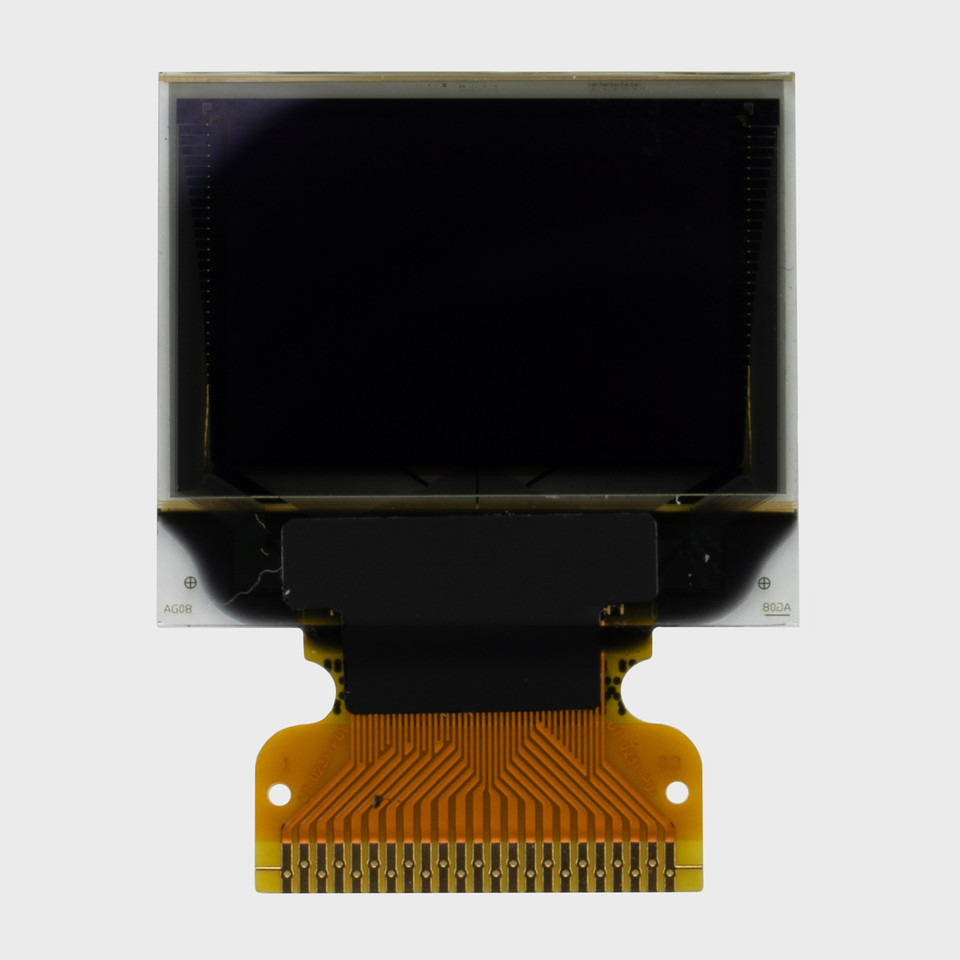

- Small OLED or PiTFT display for debugging.
- USB or CSI ribbon cables, heatsinks, etc.
Step-by-Step Build
1. Mount the Cameras
3D-print a hemispherical or faceted pod. Position the four Arducam cameras (or single sensor + microlens array) so their fields of view overlap slightly — exactly like ommatidia.
2. Optics Integration

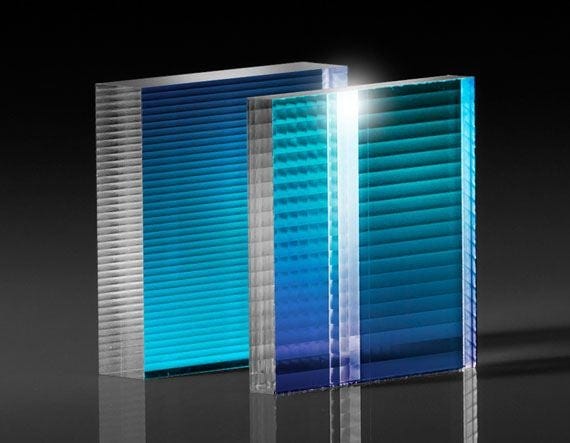

For the Edmund Fly’s Eye Array:
- Carefully glue or 3D-print a spacer so the array sits at the correct focal distance in front of the sensor.
- Each micro-lens creates its own tiny image — software can then extract motion vectors from each “facet”.
3. Software Stack
- OS: Raspberry Pi OS Lite (Bookworm)
- Camera access: `picamera2` or Arducam’s V4L2 driver for synchronized capture

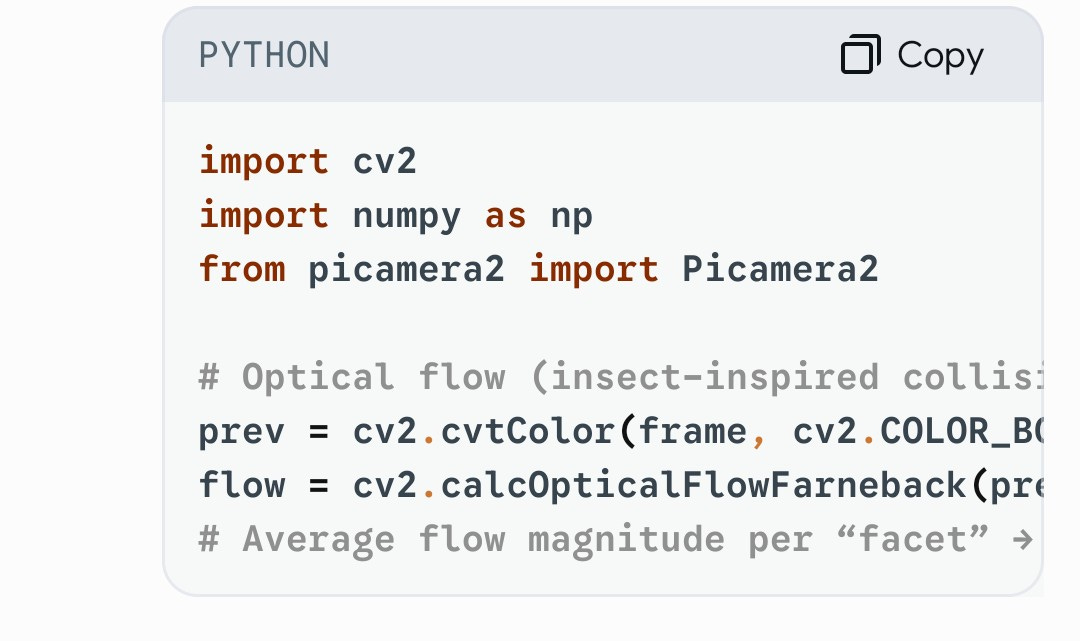

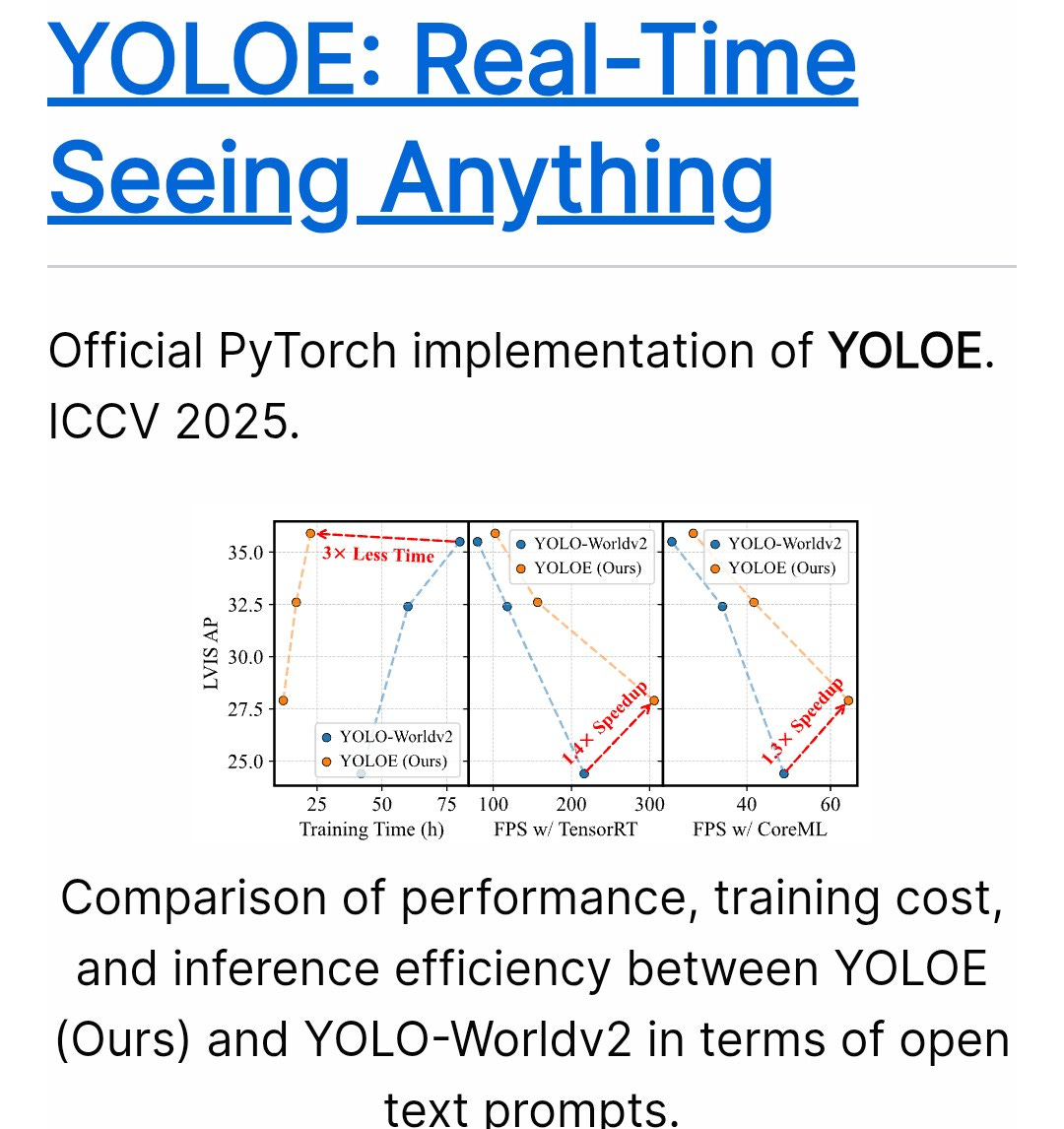

- Vision pipeline (Python):
Or
Optical flow (insect-inspired collision avoidance)
- Stitching (if using multi-cam): OpenCV `Stitcher` or simple homography for real-time panorama
- Send flow data to flight controller via MAVLink for autonomous avoidance
4. Flight Testing
- Start in a large open area.
- Program simple behaviors: “If optical flow on left facets > threshold → yaw right”
- You’ll immediately feel the insect-like agility — the drone reacts to motion in peripheral “facets” long before a normal FPV camera would.
Real-World Performance You Can Expect
- FOV: 180–300° depending on lens arrangement
- Motion detection latency: <30 ms (faster than most single-camera systems)
- Power: ~2–4 W for the vision system — fine on a 2S Whoop
Extensions & Next Level
- Add an event camera (e.g., Prophesee or cheap OpenMV Cam H7) for true microsecond motion sensitivity
- Curved sensor + 3D-printed microlens array (advanced, but papers show it’s doable with SLA resin)
- Swarm mode — multiple drones with overlapping compound eyes
Cost-Saving Alternatives to Edmund Optics
If $900 for one array feels steep, search Amazon/AliExpress for “microlens array sheet” or “fly eye lens array” — you can get 10×10 mm arrays for $10–30 that work surprisingly well for proof-of-concept.
This project sits right at the intersection of robotics, optics, and biomimicry — and it’s genuinely fun to fly. The first time your drone dodges a branch because a peripheral “facet” saw it coming, you’ll feel like you just gave it a dragonfly brain.
Happy building — drop your photos or flight videos in the comments! 🐝✈️)
